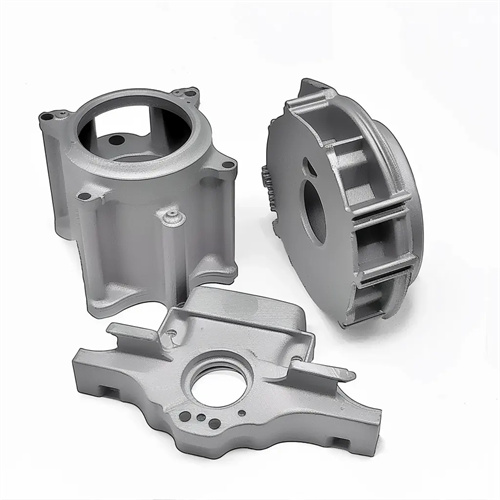

Custom Die Casting Parts: Balancing Design Complexity with Manufacturability
One of the primary challenges in producing custom die casting parts is balancing intricate design requirements with practical manufacturability. Clients often request complex geometries with thin walls, tight tolerances, and unique features that push the limits of die casting capabilities. These designs can lead to issues like incomplete filling, porosity, or uneven cooling during production. To overcome this, we implement concurrent engineering, collaborating with clients early in the design phase to optimize part geometry for die casting. Using advanced mold flow simulation software, we identify potential problem areas—such as isolated thin sections or sharp corners—and recommend modifications that maintain functionality while improving manufacturability. For example, we might suggest increasing minimum wall thickness from 0.5mm to 0.8mm in critical areas or adding fillets to enhance metal flow. This collaborative approach ensures custom die casting parts meet both design specifications and production feasibility, reducing costly redesigns and production delays.
Custom Die Casting Parts: Material Selection for Specific Performance Requirements
Selecting the right material for custom die casting parts presents a significant challenge, as clients often require specific performance characteristics like high strength, corrosion resistance, or thermal conductivity. With dozens of aluminum alloys available, each with unique properties, choosing the wrong material can result in parts that fail to meet performance expectations or are difficult to cast. We address this by conducting thorough material requirement assessments, working with clients to understand the part’s operating environment, load requirements, and durability needs. For high-strength applications like industrial machinery components, we recommend heat-treatable alloys such as A380 modified with additional copper. For parts requiring corrosion resistance, like marine hardware, we suggest alloys with higher silicon content or specify post-casting treatments like anodizing. We also test prototype castings with different alloys to verify performance before full production, ensuring the selected material balances mechanical properties with castability for each custom application.
Custom Die Casting Parts: Managing Tooling Costs and Lead Times
Tooling for custom die casting parts represents a major challenge due to high upfront costs and extended lead times, especially for low-volume production runs. Custom molds can cost tens of thousands of dollars and take 6-12 weeks to manufacture, creating barriers for clients with limited budgets or tight deadlines. To mitigate this, we offer several solutions based on production volume. For low-volume custom parts (fewer than 10,000 units), we use modular mold systems with interchangeable inserts that reduce tooling costs by 30-40%. For medium volumes, we implement rapid tooling techniques like 3D-printed mold inserts that can be produced in 2-3 weeks instead of traditional machining. We also provide transparent cost breakdowns and tooling amortization plans, helping clients understand the long-term value of custom tooling for higher-volume production. By offering flexible tooling solutions, we make custom die casting accessible to clients across various production scales.
Custom Die Casting Parts: Ensuring Consistency in Low-Volume Production
Maintaining consistent quality in low-volume custom die casting parts is challenging because production processes lack the stabilization time that high-volume runs provide. Each custom part may have unique parameters, leading to variations in fill pressure, cooling rates, and part quality between production batches. We overcome this by implementing statistical process control (SPC) from the start of production, monitoring key variables like molten metal temperature, injection speed, and mold temperature for each cycle. For low-volume runs, we increase inspection frequency, conducting 100% dimensional checks and material testing on critical features instead of sampling. We also document all process parameters for each custom part, creating a detailed production recipe that can be replicated for future runs. This data-driven approach ensures that even small batches of custom die casting parts meet consistent quality standards, reducing scrap rates and ensuring reliable performance.
Custom Die Casting Parts: Achieving Desired Surface Finishes and Treatments
Clients often require custom die casting parts with specific surface finishes or treatments, such as paint adhesion, texture, or corrosion resistance, which can be challenging to achieve consistently. Die cast surfaces may have porosity, oxide layers, or minor imperfections that affect post-casting treatments. To address this, we implement rigorous surface preparation protocols tailored to each custom requirement. For painted parts, we use chemical etching or shot blasting to create a uniform surface profile that enhances paint adhesion. For parts requiring corrosion resistance, we ensure proper mold release agent application to prevent contamination and follow strict cleaning procedures before anodizing or plating. We also work with specialized finishing partners who understand the unique properties of die cast aluminum, ensuring treatments are compatible with the casting process. By testing surface finishes on prototypes and establishing clear quality criteria, we ensure custom die casting parts meet both aesthetic and functional surface requirements.
Custom Die Casting Parts: Adapting to Design Changes and Iterations
Custom die casting projects frequently involve design changes and iterations, which can disrupt production schedules and increase costs if not managed properly. Clients may modify part geometries, tolerances, or features during development, requiring tooling adjustments or process revalidation. To handle this challenge, we design tooling with flexibility in mind, incorporating adjustable inserts or modular components that can be modified without rebuilding entire molds. We maintain open communication channels with clients, conducting regular design reviews to identify potential changes early in the process. Using digital twins of both the part and production process, we can simulate the impact of design changes on manufacturability and cost before implementing them. We also establish clear change management procedures that document revisions, update production parameters, and revalidate quality standards. This agile approach allows us to accommodate design iterations efficiently, minimizing delays and cost overruns for custom die casting projects.
