Custom Die Casting Parts: Optimizing Wall Thickness for Structural Integrity and Flow
Proper wall thickness design is foundational for optimizing custom die casting parts, as it directly impacts both structural integrity and molten metal flow during production. We recommend maintaining uniform wall thickness throughout the part, ideally between 1mm and 5mm for most aluminum alloys, to ensure consistent cooling and prevent defects like porosity or shrinkage. Abrupt thickness changes create hot spots where molten metal cools unevenly, so we use gradual transitions with taper angles of at least 10° to connect thicker and thinner sections. For load-bearing custom die casting parts, we strategically increase thickness in critical areas while keeping non-structural sections as thin as possible to reduce weight and material usage. Mold flow simulation helps identify potential flow issues—if certain areas show incomplete filling, we may slightly increase local thickness or adjust gating positions. Balancing wall thickness ensures molten aluminum fills the entire mold cavity smoothly while achieving the required strength, reducing the need for post-casting modifications.
Custom Die Casting Parts: Simplifying Geometry to Enhance Manufacturability
Simplifying complex geometries is key to optimizing custom die casting parts for efficient production without sacrificing functionality. We work with designers to identify and remove unnecessary features that complicate mold design or cause production issues. For example, deep, narrow cavities can trap air or cause incomplete filling, so we recommend reducing depth-to-width ratios to below 4:1 where possible. Undercuts often require expensive sliding cores in molds, so we suggest redesigning features to eliminate them—perhaps by angling surfaces or adjusting part orientation. We also consolidate multiple components into single custom die casting parts, eliminating assembly steps while simplifying geometry. For example, a bracket assembly with three welded pieces can often be redesigned as a single cast part with integrated features. By focusing on “design for die casting” principles, we create parts that maintain their intended function while being easier to mold, reducing tooling costs, shortening cycle times, and minimizing defects in production.
Custom Die Casting Parts: Incorporating Proper Draft Angles and Fillets
Integrating adequate draft angles and fillets is essential for optimizing custom die casting parts, ensuring easy ejection from molds and improving overall quality. Draft angles—tapered surfaces on vertical walls—reduce friction during ejection, preventing surface damage and extending mold life. We recommend minimum draft angles of 0.5° for external surfaces and 1° for internal surfaces, increasing to 2° or more for deep cavities or textured surfaces. Fillets (rounded corners) eliminate sharp edges that can cause stress concentrations in both the part and the mold, reducing the risk of cracking during cooling or under load. Internal corners typically require larger fillets (1-3mm radius) than external corners to facilitate proper metal flow. These design elements also improve molten aluminum flow through the mold, ensuring complete filling of intricate features. By incorporating sufficient draft angles and fillets in custom die casting parts, we reduce ejection forces, minimize part distortion, and create smoother surface finishes that require less post-processing.

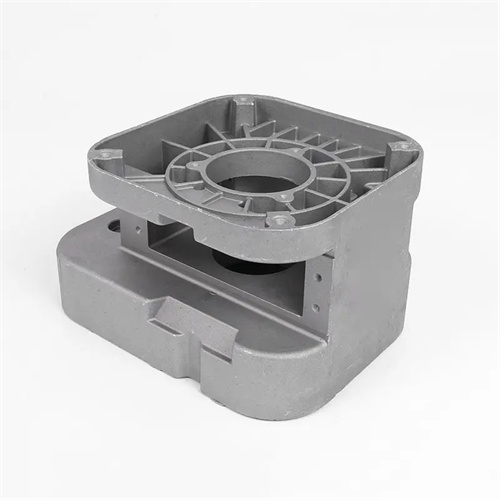

Custom Die Casting Parts: Strategic Use of Ribs and Reinforcements
Strategically designed ribs and reinforcements optimize the strength-to-weight ratio of custom die casting parts, allowing thinner wall sections while maintaining structural performance. We place ribs perpendicular to the direction of applied force to maximize their strengthening effect, typically spacing them 2-3 times the wall thickness apart to avoid overcrowding. Rib height should generally not exceed 5 times the base thickness to prevent sink marks on the opposite surface, and we add fillets at rib bases to distribute stress evenly. For large, flat custom die casting parts prone to warping, we use a grid pattern of ribs to stiffen the structure without adding excessive weight. We also design ribs to enhance molten metal flow, creating channels that guide aluminum to distant areas of the mold cavity. By using ribs strategically instead of increasing overall wall thickness, we reduce material usage by 15-30% while maintaining or improving part strength, creating lighter, more cost-effective custom die casting parts.
Custom Die Casting Parts: Optimizing Gate and Runner Placement
Careful planning of gate and runner placement is critical for optimizing custom die casting parts, ensuring proper molten metal flow and uniform filling of the mold cavity. We position gates to direct metal flow toward the thickest sections of the part, allowing them to fill first and act as reservoirs for feeding thinner areas as the metal solidifies. Gate size is determined by part volume and thickness—typically 50-70% of the thickest wall section—to control flow velocity and prevent turbulence that can cause defects. For large or complex custom die casting parts, we often use multiple gates positioned to ensure simultaneous filling of all sections, reducing the risk of cold shuts where separate metal streams fail to merge properly. Runners should be designed with smooth curves and gradually decreasing cross-sections to maintain pressure and minimize metal temperature loss. By simulating flow patterns with mold flow analysis, we optimize gate and runner design before mold construction, ensuring custom die casting parts fill uniformly with minimal porosity, consistent density, and reduced internal stresses.
Custom Die Casting Parts: Designing for Post-Casting Processes and Finishes
Optimizing custom die casting parts for post-casting processes ensures efficient production and high-quality final finishes. We design parts with flat, accessible surfaces for machining operations if required, avoiding complex geometries that would require expensive multi-axis machining. For parts needing surface treatments like painting or anodizing, we ensure uniform wall thickness to prevent uneven coating absorption and specify appropriate surface roughness (typically 1.6-3.2 Ra) to promote adhesion. Threaded features can often be cast directly into custom die casting parts using collapsible cores, eliminating the need for tapping operations, but we ensure sufficient wall thickness around threads to maintain strength. For parts requiring assembly with other components, we design precise mounting points and alignment features that minimize the need for post-casting adjustment. By considering post-casting processes during the initial design phase, we reduce production steps, lower labor costs, and ensure custom die casting parts meet their final specifications with minimal rework or scrap. This holistic approach creates a more efficient production process from mold to finished product.
