Precision Dimensional Control in Zinc Die Casting for Small Parts
Zinc die casting delivers exceptional precision dimensional control that makes it ideal for small precision components. The material’s superior fluidity allows us to produce intricate features with tight tolerances of ±0.02 mm, even in components smaller than 10 mm in size. This level of precision eliminates the need for secondary machining operations that add cost and introduce potential errors in small parts.
The rapid solidification of zinc in die casting creates fine, uniform microstructures that minimize shrinkage and warpage in tiny components. We consistently maintain dimensional stability across production runs, ensuring interchangeability of small precision parts like electrical connectors and micro-switches. For components with complex geometries—such as miniature gears and valve bodies—zinc die casting captures fine details and critical dimensions in a single operation, outperforming other manufacturing methods in both accuracy and repeatability for small parts.
Material Properties Enabling Zinc Die Casting Precision
The unique material properties of zinc alloys enable the precision required for small component manufacturing. Zinc’s high strength-to-weight ratio (200–300 MPa tensile strength) provides structural integrity in thin-walled small parts that would be fragile if made from other materials. The material’s natural hardness (80–110 HB) resists wear in small moving components like miniature bearings and linkage pins.
Zinc’s low melting point (380–420°C) allows for faster cycle times in small part production while reducing thermal stress on precision tooling. The alloy’s excellent machinability, when needed, enables fine finishing of critical surfaces without damaging delicate features. These properties make zinc die casting particularly well-suited for small precision components that require both structural stability and intricate detailing—from medical device components to electronics hardware.
Efficiency in High-Volume Production of Small Zinc Die Casting Parts
Zinc die casting excels in efficient high-volume production of small precision components, a key factor in its market dominance. The process achieves fast cycle times of 15–60 seconds per shot, even for complex small parts, significantly outpacing machining or powder metallurgy in production throughput. This efficiency scales effectively, with single zinc die casting machines capable of producing millions of small components annually.
The near-net-shape capability of zinc die casting minimizes material waste—critical for small parts where raw material costs can dominate production expenses. We’ve optimized gating and runner designs for small components, reducing scrap rates to below 5% and maximizing material utilization. This combination of high throughput, minimal waste, and consistent quality makes zinc die casting the most efficient manufacturing method for high-volume production of small precision parts.
Design Flexibility for Complex Small Components in Zinc Die Casting
Zinc die casting offers unmatched design flexibility for creating complex small precision components that would be impractical with other methods. The material’s fluidity allows us to integrate multiple features—threads, bosses, thin walls, and intricate surface details—into single small components that would require assembly of multiple parts if made by other processes.

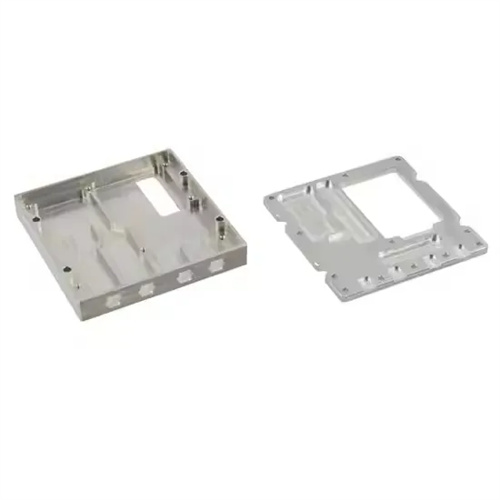

We produce small precision components with complex internal geometries, such as micro-fluidic channels and miniature valve seats, in a single casting operation. For electronics, zinc die casting creates small enclosures with integrated EMI shielding and heat dissipation features. This design consolidation reduces part counts, improves reliability, and enables miniaturization beyond what’s possible with alternative manufacturing methods. The ability to realize complex designs in small form factors is a primary reason zinc die casting dominates this manufacturing segment.
Cost Advantages of Zinc Die Casting for Small Precision Parts
Zinc die casting provides significant cost advantages for manufacturing small precision components compared to alternative methods. While tooling costs for zinc die casting are higher upfront, they are quickly amortized across high production volumes, resulting in lower per-unit costs. The elimination of secondary operations—such as machining, plating, and assembly—further reduces costs for small parts.
Material costs remain competitive despite zinc’s higher density, as the near-net-shape process uses minimal material and the alloy’s excellent castability reduces scrap. For example, zinc die casting produces small electrical connectors at 30–40% lower cost than machining from brass, while delivering superior dimensional consistency. These cost advantages, combined with faster time-to-market from simplified production workflows, make zinc die casting the economical choice for small precision component manufacturing.
Quality Consistency in Zinc Die Casting for Small Components
Quality consistency is a hallmark of zinc die casting that solidifies its dominance in small precision component manufacturing. The automated nature of the process minimizes human error, ensuring uniform quality across production runs of millions of small parts. Inline inspection systems can easily verify critical dimensions and features of small zinc die casting components using machine vision, ensuring 100% quality control without slowing production.
The material’s predictable behavior and stable casting process result in minimal part-to-part variation, even for components with intricate features. We’ve achieved ppm-level defect rates for critical small components like medical device connectors and automotive sensors using zinc die casting. This consistent quality reduces rework, improves assembly yields, and enhances end-product reliability—critical factors for manufacturers of small precision components where even minor defects can cause system failures.
